Parametric Walls
Our Parametric Wall designs are one of the most dynamic ways of making an impact on a space. We often refer to these as walls in motion. They absorb up to 125% of the sound and become a work of art. Simple to install with our louver tabs that lock into place. These are an effective and gorgeous option for specification.
125%
1.25 NRC (125% sound absorption)

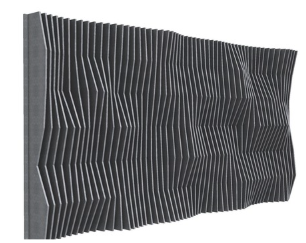

Rock Parametric Wall Series
Need an extended length? We fabricate any desired length. 30' version below:

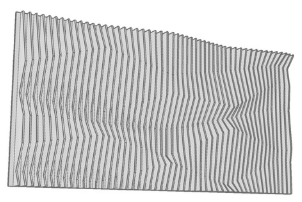

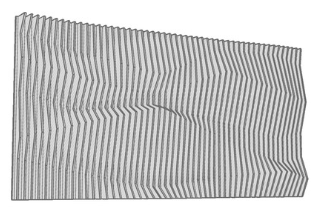

Style: Air[]Port Rock Wall Sections A-D
Rock Parametric Wall Series Specifications:
Category: Parametric Walls
Name: Rock Parametric Wall Series
Construction: Parametric Louvered
Styles: A, B, C, D, E, F, G & H
Sizes: 48" W x 96"/108" L x 6" D
Color:
Click to View
PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 45 (Average/Segment)
NRC: 1.25
Available Thicknesses: 9mm (3/8"),
12mm (1/2"), & 24mm (1")
Location: Wall
Mounting Method:
- Adhesion (LocTite HD)
- Direct Attach Fasteners
- Adhesion + Fasteners
Hardware:
- Z-Clips or Cleat
- Wood/Drywall Screws
Wave Parametric Wall Series
Wave Parametric Wall Series Specifications:
Category: Parametric Walls
Name: Wave Parametric Wall Series
Construction: Parametric Louvered
Styles: A.1, A.2, B.1, B.2, C.1, & C.2
Sizes: 48" W x 96"/108" L x 6" D
Color:
Click to View
PET Acoustic Felt Color
Options
Fire Rating: ASTM E84 CLASS A
Sabins: 45 (Average/Segment)
NRC: 1.25
Available Thicknesses: 9mm (3/8"),
12mm (1/2"), & 24mm (1")
Location: Wall
Mounting Method:
- Adhesion (LocTite HD)
- Direct Attach Fasteners
- Adhesion + Fasteners
Hardware:
- Z-Clips or Cleat
- Wood/Drywall Screws
Curtain Parametric Wall Series
Curtain Parametric Wall Series Specifications:
Category: Parametric Walls
Name: Curtain Parametric Wall Series
Construction: Parametric Louvered
Styles: A, B, C, D, E, & F
Sizes: 48" W x 96"/108" L x 6" D
Color:
Click to View
PET Acoustic Felt Color
Options
Fire Rating: ASTM E84 CLASS A
Sabins: 45 (Average/Segment)
NRC: 1.25
Available Thicknesses: 9mm (3/8"),
12mm (1/2"), & 24mm (1")
Location: Wall
Mounting Method:
- Adhesion (LocTite HD)
- Direct Attach Fasteners
- Adhesion + Fasteners
Hardware:
- Z-Clips or Cleat
- Wood/Drywall Screws

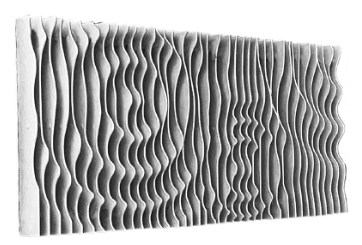

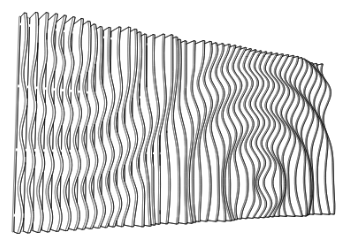

Water Drops Parametric Wall Series
Water Drops Parametric Wall Series Specifications:
Category: Parametric Walls
Name: Water Drops Parametric Wall Series
Construction: Parametric Louvered
Styles: Drip, & Storm
Sizes: 48" W x 96"/108" L x 6" D
Color:
Click to View
PET Acoustic Felt Color
Options
Fire Rating: ASTM E84 CLASS A
Sabins: 45 (Average/Segment)
NRC: 1.25
Available Thicknesses: 9mm (3/8"),
12mm (1/2"), & 24mm (1")
Location: Wall
Mounting Method:
- Adhesion (LocTite HD)
- Direct Attach Fasteners
- Adhesion + Fasteners
Hardware:
- Z-Clips or Cleat
- Wood/Drywall Screws
Need a Custom Design?
