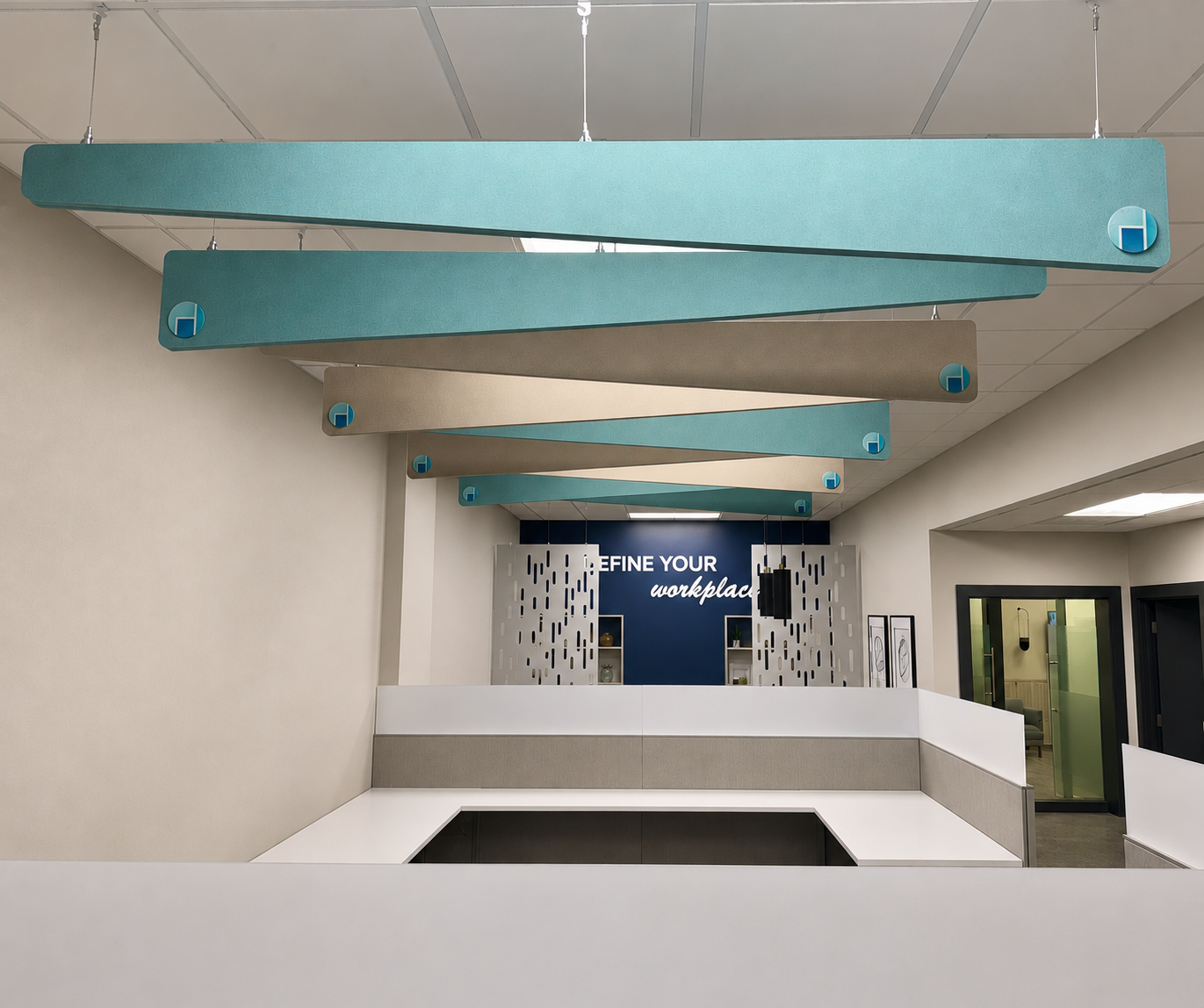

Classic Baffles
Baffles can be single, double or 3-ply in design. The 3-ply traps Air[]Space elevating the effectiveness of the product. With 49 colors to choose from and 20 faux wood grain prints, the design realm is endless. All of our products are paired with the appropriate hardware and most are preassembled, saving precious time and labor for our clients.
Classic Baffles
Style: Aileron (3-Ply Hollow Core)
8 Foot Version
4 Foot Version
Style: Cross Wind (3-Ply Hollow Core)
8 Foot Version
4 Foot Version
Style: Wind (3-Ply Hollow Core)
8 Foot Version
4 Foot Version
Style: UAP (Folded 2-Layer)
8 Foot Version
4 Foot Version
Specifications:
Category: Baffles
Subcategory: Classic Baffles
Construction: 3-layer PET Felt, Hollow Core & 2-Layer Folded (UAP)
Styles: 8' & 4' Baffles
Size: 11.5" H x 95" L &
11.5" H x
47" L
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 6 - 8+ (A, B), 12 - 16+ (C-F)
NRC: 0.75 - 1.0+
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)
Wind Style Baffle
UAP Baffles (Ganged Together in 24' L)
Fuselage
Available Lengths: 12", 24", 48", & 72"
Available Widths: 8" or 12"
Available Heights: 8" or 12"
Available Lengths: 48" & 72"
Available Width: 6"
Available Heights: 6" or 8"
Specifications:
Category: Clouds
Name: Fuselage
Styles: Box Beam Baffles in Various Dimensions
Sizes: 2-8" W x 6-11.5" H x 47-95" L
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 96 - 104
NRC: 1.25
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Lighting Option: LED Beam Downlight or Down/Uplight - Both Optional (upcharge)
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

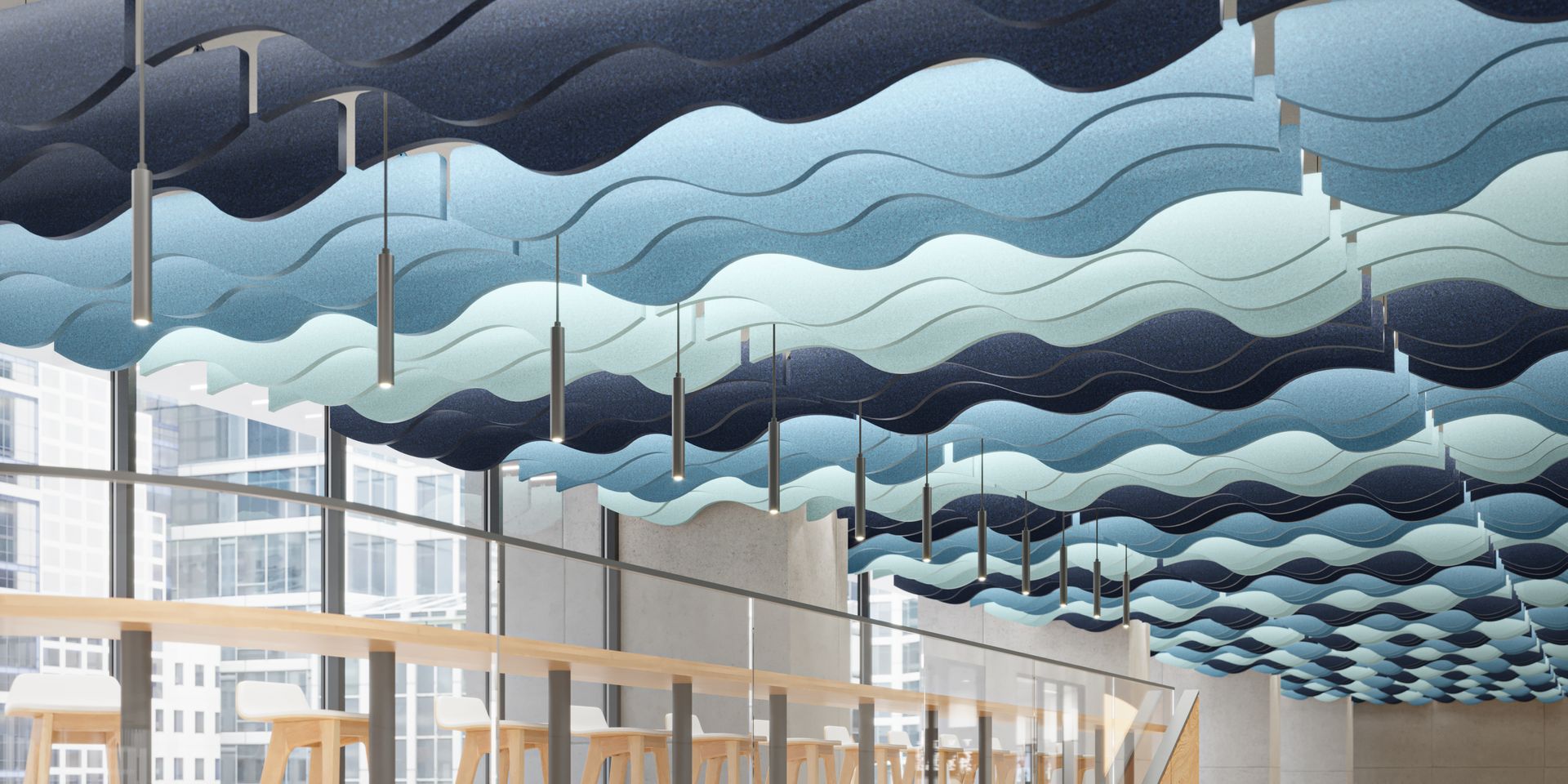

Sound Wave
Rendering
Series A
Series B
Specifications:
Category: Baffles
Name: Sound Wave
Construction: 3-layer PET Felt, Hollow-Core
Styles: A & B
Size:
16" H x 96" L
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 6 - 8.5+
NRC: 0.75 - 1.0+
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)
MACH Series
Our MACH Series product is often used on existing acoustic grid, attaching mechanically or via rare-Earth magnets. It can also be added as a floating grid design element (shown here) to mitigate reverb/echo and add a dramatic aesthetic to a space.
MACH Series

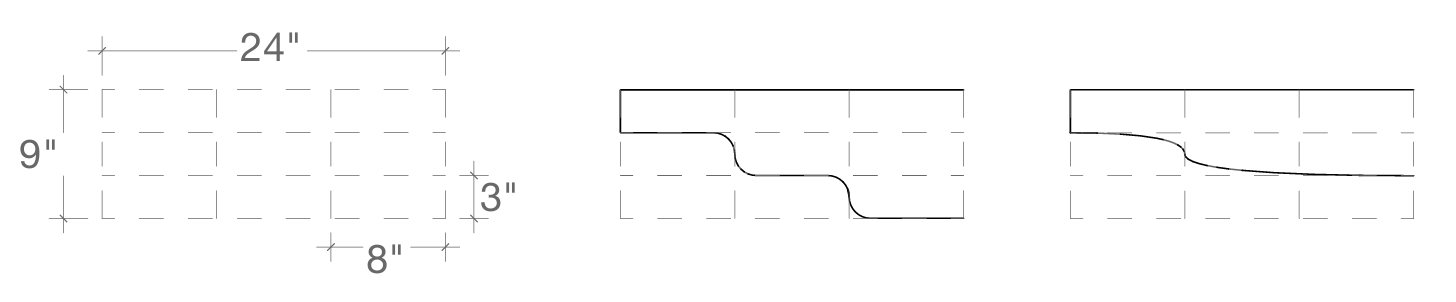

MACH 2 Baffle Size Details

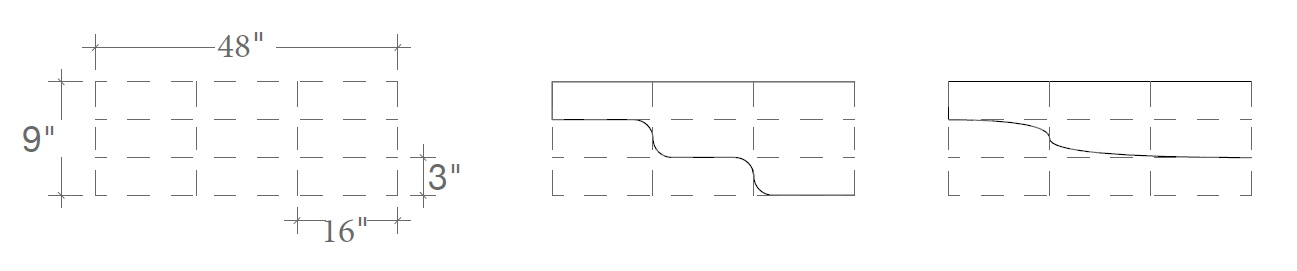

MACH 4 Baffle Size Details
MACH 2 & 4 Available in Series A
MACH 2 & 4 Available in Series B
MACH 2 & 4 Available in Series C
Specifications:
Category: Baffles
Name: MACH Series
Construction: Single Layer PET Felt
Styles: MACH 2 & 4 Available in Series A, B & C
Size: 3" - 9" H x 24"/48"W
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 6 - 8+
NRC: 0.9 - 1.0+
Available Thicknesses: 24mm (1")
Location: Ceiling Drop-In for 15/16 Ceiling Grids
Mounting Method: Magnetic
Hardware:
- Included (Please Verify Steel Grid for Magnets)
