Clouds
Acoustic Clouds are a highly effective to absorb sound, disrupt reverb and add a meaningful aesthetic asset to any space. From 48" to 108", round or square, simple or dynamic, we have a long list of products available for specification. All of our clouds have a proprietary 'pop-slot', making assembly simple and efficient.

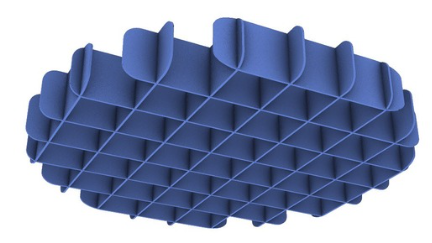

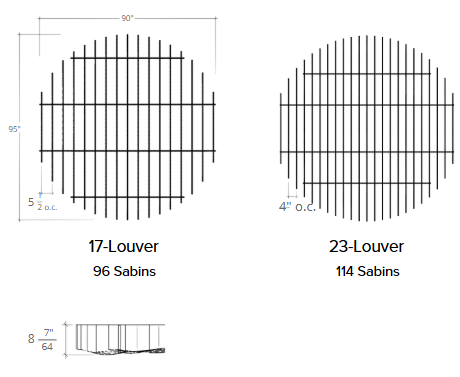

Dominion
Three Different Styles for Ultimate Customization
(12 Louvers)
Specifications:
Category: Clouds
Name: Cloud, Square
Styles: A
Size: 8" D x 95" L
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 96 - 104
NRC: 1.25
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

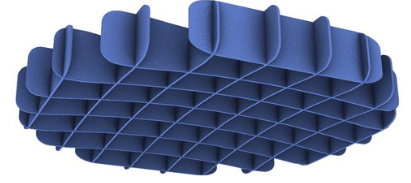

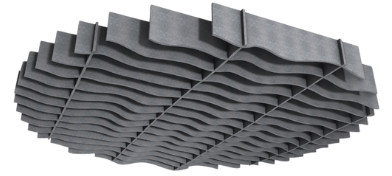

Command
A Touch of Style
Specifications:
Category: Clouds
Name: Cloud, Square
Styles: A
Size: 8" D x 95" L
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 96 - 104
NRC: 1.25
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

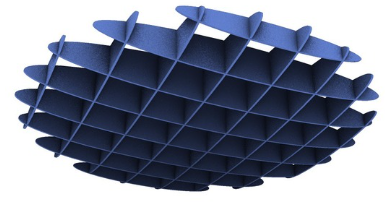

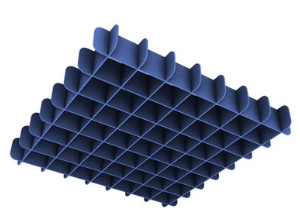

Camber
Specifications:
Category: Clouds
Name: Camber
Styles: Varies
Size: 4' x 4', 8' x 8'
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: Varies
NRC: Varies
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

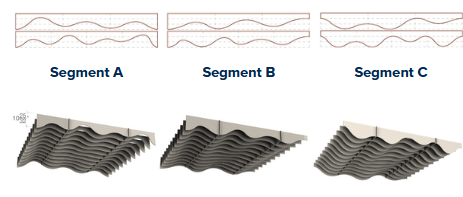

Camber Styles

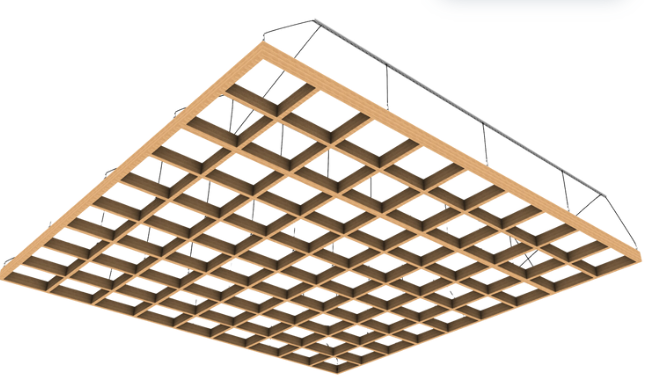

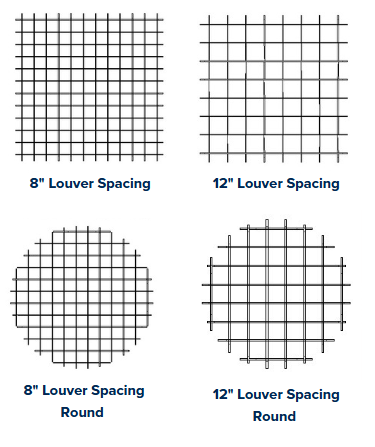

Quadra

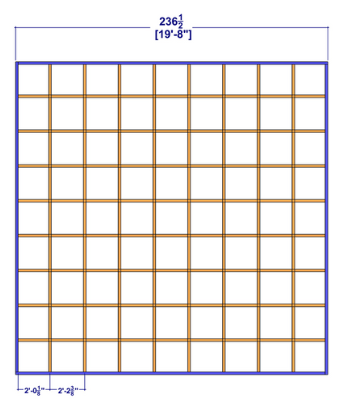

Detail Drawing
Specifications:
Category: Clouds
Name: Quadra
Styles: Rectangle
Size:
Varies (48" x 48" minimum through 20' x 20').
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 16-32+
NRC: 0.75
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

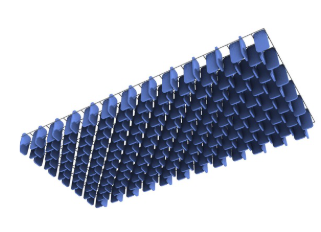

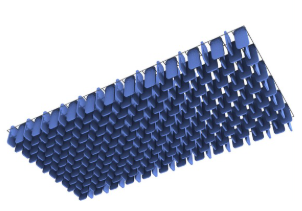

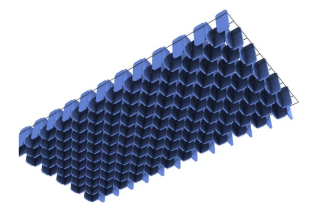

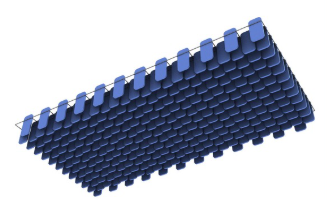

Wind Shear
Note: The wire mesh can be powder coated to any Sherwin Williams or Benjamin Moore paint color.
Specifications:
Category: Clouds (Tiled)
Name: Wind Shear
Styles: A, B, C, D & E
Configuration (below): Herringbone, Tee-Up, Alternating & Offset
Size: 6-18" L x 4" W
Color: Click to View PET Acoustic Felt Color Options
Fire Rating: ASTM E84 CLASS A
Sabins: 1-72+
NRC: 1+
Available Thicknesses: 9mm (3/8"), 12mm (1/2"), & 24mm (1")
Location: Ceiling
Mounting Method:
- Cable Suspended
Hardware:
- Included (Please Indicate Substrate)

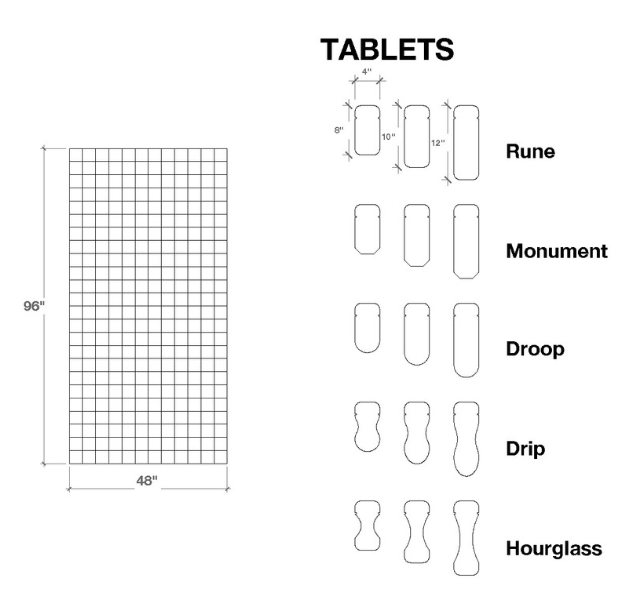

Wind Shear Styles
Need a Custom Design?
Click Here to View Our Customized Clouds
